Question by kevinspawner · Dec 01, 2014 at 08:28 AM · 2dprefabshootingslingshot

slingshot script - velocity help needed

Hi there,

I have a problem in slingshot script that I have created to shoot prefabs. Evryting is working fine except the prefab is not shot in the way I needed. Once I remove the finger it should shoot the fruit in the direction specified in the velocity, instead it shoot the prefab inside the circular area which is specified for touch and drag.

Please help me to figure out what am doing wrong here. Am i missing something? So far no clue yet. Thanks in advance.

 {

     private Vector3 slinngshotMiddleVector;

     public Transform leftSlingshotOrigin;
     public Transform RightSlingshotOrigin;

     public GameObject FruitPrefab;

     public Transform fruitWaitPosition;


     void Start()
     {
         slinngshotMiddleVector = new Vector3((leftSlingshotOrigin.position.x+ RightSlingshotOrigin.position.x)/2,(leftSlingshotOrigin.position.y+RightSlingshotOrigin.position.y)/2,0);
         initializeFruit();
     }



     void Update()
     {

         if(Input.touchCount>0)
         {
             if(Input.GetTouch(0).position.x< Screen.width/3)
             {
                 if (Input.touchCount > 0 && Input.GetTouch (0).phase == TouchPhase.Moved)
                 {

                 Vector3 currentTouchPosition = Camera.main.ScreenToWorldPoint(Input.GetTouch(0).position);
                 currentTouchPosition.z=0;

                 if (Vector3.Distance(currentTouchPosition,slinngshotMiddleVector)> 0.3f)
                 {
                         var maxPos = (currentTouchPosition - slinngshotMiddleVector).normalized * 0.3f + slinngshotMiddleVector;
                         FruitPrefab.transform.position = maxPos;
                 }

                 else
                 {
                         FruitPrefab.transform.position = currentTouchPosition;
                 }

                 float distance = Vector3.Distance(slinngshotMiddleVector,FruitPrefab.transform.position);

                 }

             }

         }

         else
         {
             float distance = Vector3.Distance(slinngshotMiddleVector, FruitPrefab.transform.position);
             if(distance>0.2f)
             {

                 Vector3 velocity = slinngshotMiddleVector - FruitPrefab.transform.position;
                 FruitPrefab.GetComponent<Rigidbody2D>().velocity = new Vector2(velocity.x, velocity.y) *2.0f;
                 Debug.Log("Thrown Bird");
             }
         }

     }


     private void initializeFruit()
     {
         FruitPrefab.transform.position = fruitWaitPosition.position;
     }




 }

Comment
Add comment
10 |3000 characters needed characters left characters exceeded
▼
  • Viewable by all users
  • Viewable by moderators
  • Viewable by moderators and the original poster
  • Advanced visibility
Viewable by all users

1 Reply

· Add your reply
  • Sort:
avatar image
0

Answer by taxvi · Dec 01, 2014 at 08:55 AM

how about changing line 59 like this:

 Vector3 velocity = FruitPrefab.transform.position - slinngshotMiddleVector;
Comment
Add comment · Show 10 · Share
10 |3000 characters needed characters left characters exceeded
▼
  • Viewable by all users
  • Viewable by moderators
  • Viewable by moderators and the original poster
  • Advanced visibility
Viewable by all users
avatar image kevinspawner · Dec 01, 2014 at 09:31 AM 0
Share

Thanks. It is moving at least. But it is going in a wrong direction. If I pull the fruit back it shoot throw it in a forward direction. But as per your suggestion it is moving in an opposite direction.

avatar image kevinspawner · Dec 01, 2014 at 09:38 AM 0
Share

Also. I need to know how to change the selection angle. In my start code it is slinngshot$$anonymous$$iddleVector = new Vector3((leftSlingshotOrigin.position.x+ RightSlingshotOrigin.position.x)/2,(leftSlingshotOrigin.position.y+RightSlingshotOrigin.position.y)/2,0); and I would like to make the drag selection only on the half side. Currently it is in a circle. How to make it only half Circle? Thanks in advance.

avatar image taxvi · Dec 01, 2014 at 09:40 AM 0
Share

sorry I guess I understood your question wrong, where is the

circular area which is specified for touch and drag

avatar image kevinspawner · Dec 01, 2014 at 09:53 AM 0
Share

alt text

avatar image kevinspawner · Dec 01, 2014 at 09:59 AM 1
Share

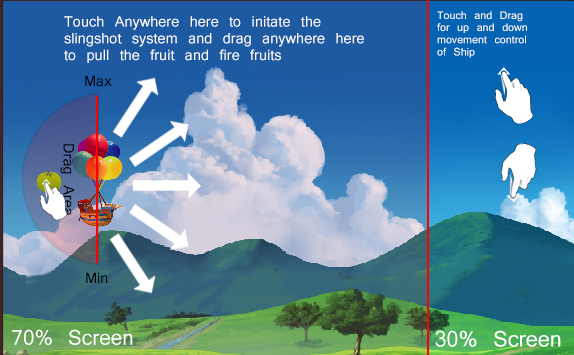

Hope I have explained it clearly. Sorry, I should have attached the image earlier.

  1. I have created the $$anonymous$$ and max points as left slingshot origin and right slingshot origin in my code. But it is moving in a circle. I need only the half circle Drag area [as per image].

  2. Also the fruit prefab should shoot in the forward direction as marked in the image. Currently after changing the code as per your suggestion it is shooting in the wrong direction.

Show more comments
