Particle effect / Atlas / Spritesheet

Question

Hi eveyone,

I am currently struggling with a material I am applying to a particle system.

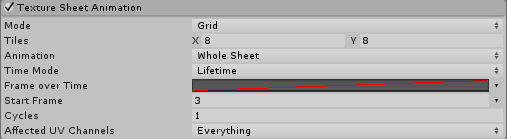

I want to have all of my textures in a single atlas. In the atlas I have a spritesheet of a smoke effect (red square). alt text So I enable the texture sheet animation on my particle system. But I don't know which values to tweak it so I can only have my spritesheet playing Appreciate any help ;)

Answer 1

Best Answer

Answer by ifurkend · Mar 10, 2019 at 01:19 AM

While you can use the curve of frame over time to order the sequence of the animated smoke (4-5-12-13-14-20-21-22) with constant keys (as opposed to linear or spline), this arrangement is prone to spillage to the neighboring grid and uneven speed of flipping.

What you should do is to rearrange the animated smoke frames on a single row, e.g. the 3rd row, then use “single row” animation and use the default linear frame over time ascending curve.

Add comment · Show 2 · Share

ePiQue · Mar 10, 2019 at 02:47 PM 0

Share

Thanks for the row advice ! Tried it and it works. But what if the spritesheet takes more than 1 ?

ifurkend · Mar 10, 2019 at 03:39 PM 0

Share

Then use the whole sheet animation and manually adjust each key value corresponding to the grid.
