Make a grid and turn it to List

Question

Hi, i just start programming for unity 3d (3-4 days from now %) ) and make a simple script to make grid from cubes (you can choose how many cells you want to make) and its working... but i think its to complicated what i can change for simplicity? And one more question... how to sort this list? Thanks guyz!

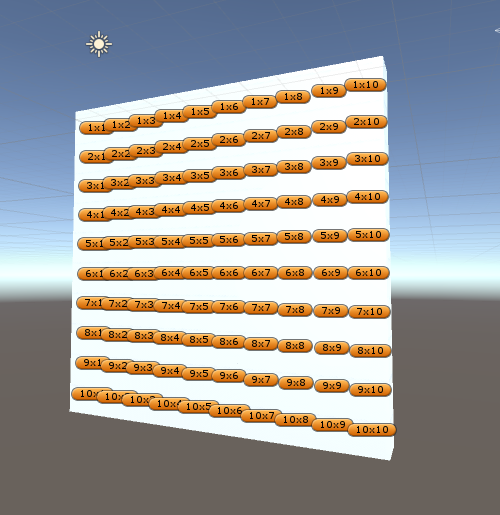

alt text

 using UnityEngine;
 using System.Collections;
 using System.Collections.Generic;

 public class CreateAGridFromCube : MonoBehaviour {

     public GameObject cube;

     public int horCells;
     public int verCells;

     public List<GameObject> cellsList = new List<GameObject>();

     // Use this for initialization
     void Start () {
         cellsList.Add (cube);
         MakeGrid (horCells,verCells);
     }

     void MakeGrid(int hor, int vert){
         for (int x = 0; (x + 1) < hor; x++) {
             GameObject clone = Instantiate (cube);
             clone.transform.position = new Vector3(clone.transform.position.x+1,clone.transform.position.y,clone.transform.position.z);
             clone.name = "1x" + (x + 2);
             for (int y = 0; (y+1) < vert; y++) {
                 GameObject cloneV = Instantiate (cube);
                 cloneV.transform.position = new Vector3(cloneV.transform.position.x,cloneV.transform.position.y-1,cloneV.transform.position.z);
                 cloneV.name = (y + 2)+ "x" + (x + 1);
                 cellsList.Add (cloneV);
                 cube = cloneV;
             }
             cellsList.Add (clone);
             cube = clone;
         }
         int z = cellsList.Count - 1;
         GameObject fuckingLastClones = cellsList [z];
         for (int i = 0; (i+1) < vert; i++) {
             GameObject LastLastClones = Instantiate (fuckingLastClones);
             LastLastClones.transform.position = new Vector3(LastLastClones.transform.position.x,LastLastClones.transform.position.y-1,LastLastClones.transform.position.z);
             LastLastClones.name = (i+2) + "x" + hor;
             cellsList.Add (LastLastClones);
             fuckingLastClones = LastLastClones;
         }
     }
 }

Answer 1

You definitely made the spawning much more complicated than is needed. For a static length grid I'd also use a 2d array, so that if you need to access a specific grid cube you can just pass in the x and y.

 using UnityEngine;
 using System.Collections;

 public class CreateAGridArrayFromCube : MonoBehaviour
 {
     public GameObject cube;

     public int horCells = 10;
     public int verCells = 10;
     public Vector3 startPos = new Vector3(0f, 0f, 0f);
     public float spacingX = 1f;
     public float spacingY = 1f;

     public GameObject[,] cellsArray;

     void Start()
     {
         MakeGrid(horCells, verCells);
     }

     void MakeGrid(int hor, int vert)
     {
         cellsArray = new GameObject[hor,vert];
         GameObject clone;
         Vector3 clonePos;
         for(int x = 0; x < hor; ++x)
         {
             for(int y = 0; y < vert; ++y)
             {
                 clonePos = new Vector3(startPos.x + (x * spacingX), startPos.y + (y * spacingY), startPos.z);
                 clone = Instantiate(cube, clonePos, Quaternion.identity) as GameObject;
                 clone.name = (y + 1) + "x" + (x + 1);
                 cellsArray[x,y] = clone;
             }
         }
     }
 }

If you'd rather use the List, then you can replace these lines:

 public GameObject[,] cellsArray;
 cellsArray = new GameObject[hor,vert];
 cellsArray[x,y] = clone;

with these:

 public List<GameObject> cellsList;
 cellsList = new List<GameObject>();
 cellsList.Add(clone);

Then, to access a specific grid cube from the List (remember to start counting from 0):

 cellsList[(x * verCells) + y];
