Question by Batka · Feb 13, 2017 at 08:20 AM · physics2dcollider2d

ContactPoint2D.contacts[0].normal returns sometimes returns different value that breaks my game.

Hi,

I have a 2d game where the ball (Player) bounces from obstacles like a laser using Vector2.Reflect.

I tried everything, and through the debugger I noticed that sometimes ContactPoint2D.contacts[0].normal returns a different value.

So, with this function, I reflect the ball:

 void ReflectBall(ContactPoint2D contact, Vector2 ballDirection)
         {
             Vector2 inDirection = Vector2.Reflect(ballDirection, contact.normal);
             float rot = Mathf.Atan2(inDirection.y, inDirection.x) * Mathf.Rad2Deg;
             _transform.eulerAngles = new Vector3(0, 0, rot);

         }

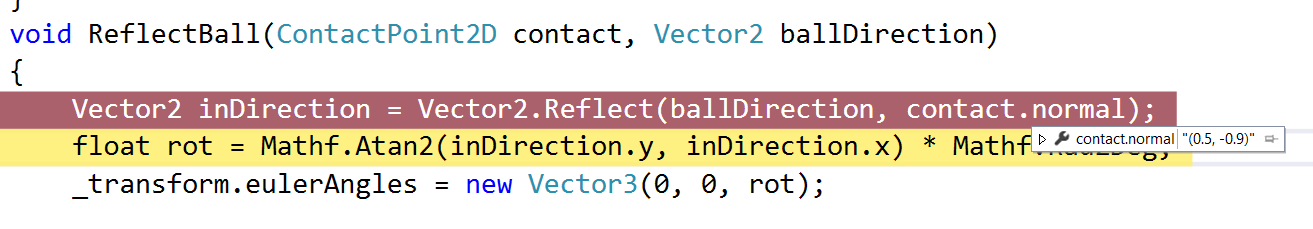

And now, using the debugger, I see that the normal of the contact point is x(0.5) y(-0.9)

alt text

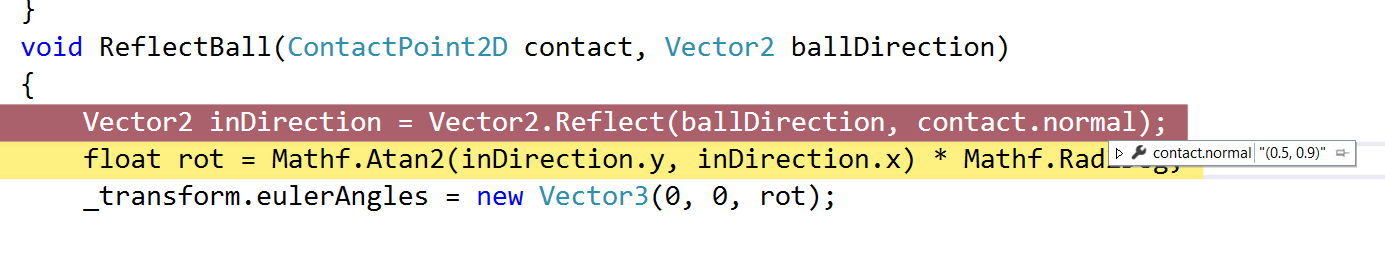

Now I set the debugger to break only when the normal does not equal that value (0.5, -0.9). And I tested on the same game object, hitting it on the same spot:

alt text

Here is the object with it's collider:

http://prntscr.com/e7x0dj

as well its physics components:

http://prntscr.com/e7x0nd

Now here is the OnCollisionEnter function:

  void OnCollisionEnter2D(Collision2D col)
         {
             Vector2 forward = _transform.right;
             // ball hit bound of gamefield, level is going to reset
             if (col.gameObject.layer == LayerMask.NameToLayer(Constants.LayerBounds))
             {
                 shouldResetTransform = true;
                 Reset(false);
             }

             //if ball hit on figure
             else
             {
                 string tag = col.gameObject.tag;
                 if (tag.Equals("Normal") || tag.Equals("Hard") || tag.Equals("NotDisappear"))
                 {
                     ContactPoint2D contact = col.contacts[0];
                     ReflectBall(contact, forward);
                     OnHitResponse(col.gameObject);
                 }

             }
         }

OnHitResponse() is a heavy function, but it's called after RefflectBall().

I'd really appreciate any ideas. Thanks :)

Comment
Add comment
10 |3000 characters needed characters left characters exceeded
▼
  • Viewable by all users
  • Viewable by moderators
  • Viewable by moderators and the original poster
  • Advanced visibility
Viewable by all users

1 Reply

· Add your reply
  • Sort:
avatar image
2

Answer by MelvMay · Feb 13, 2017 at 09:40 AM

For starters, something is very odd with that normal as it's supposed to be normalized and (0.5, -0.9) clearly isn't.

Ensure that you're using continuous collision detection otherwise you can be penetrating the other collider.

Also, changing the Transform of a GameObject that uses a Dynamic body-type Rigidbody2D is bad behaviour. If you want to modify the rotation of a Rigidbody2D then set its rotation property i.e. let the Rigidbody2D type drive the Transform, not the other way around.

Comment
Add comment · Show 1 · Share
10 |3000 characters needed characters left characters exceeded
▼
  • Viewable by all users
  • Viewable by moderators
  • Viewable by moderators and the original poster
  • Advanced visibility
Viewable by all users
avatar image Batka · Feb 14, 2017 at 10:38 AM 0
Share

As far as I understand, this is a surface normal, not a normalized vector.

A surface normal vector is the vector which angle with the surface is perpendicular.

See this
