Question by Hello_Lp · May 02, 2013 at 01:30 PM · raycast

Raycast forward

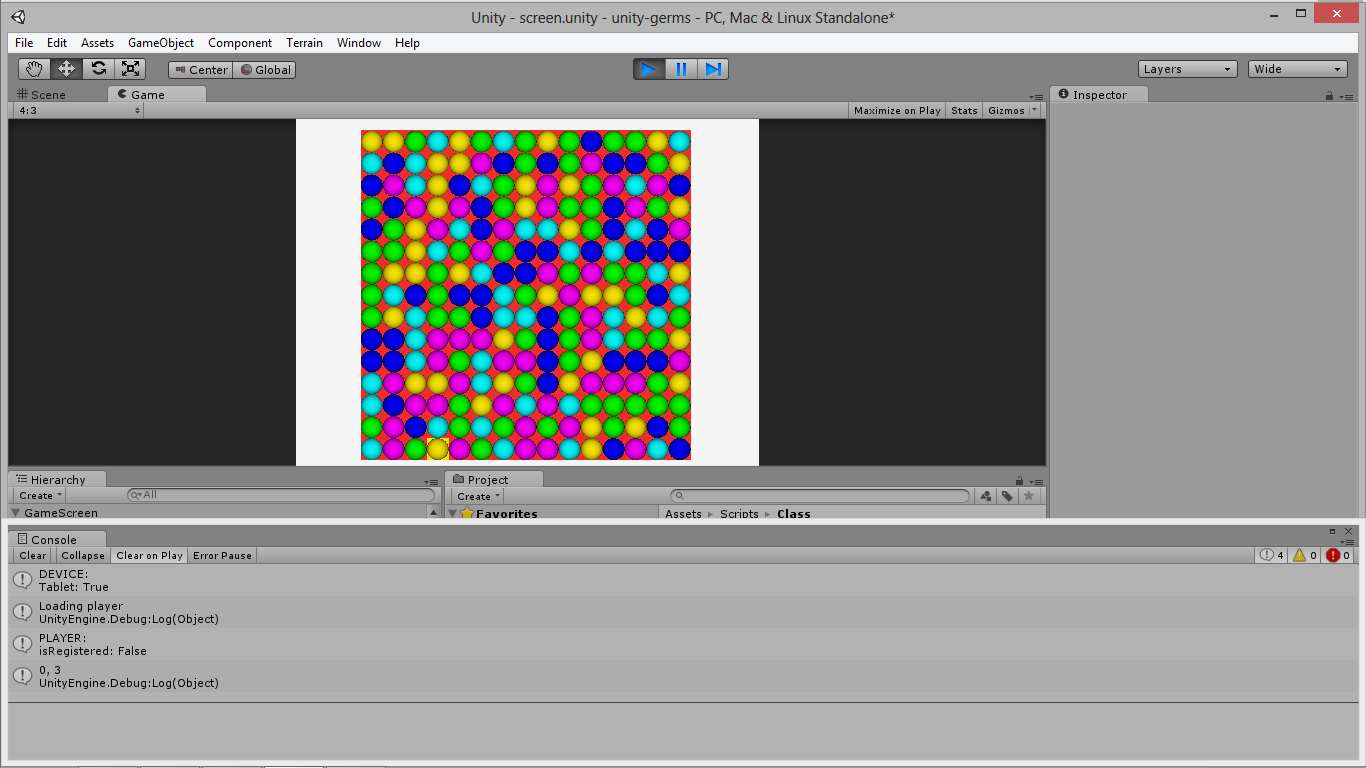

I am having trouble using Physics raycast. When I click the Input.mousePosition, the wrong ball is select. The bottom left ball is 0, 0, but when I click it ball 0, 3 gets selected (show with yellow background instead of red).

It is also inconsistent such that when I restart the game mode, I get 0, 1 when I click again. I have tried using ScreenToWorldPoint() instead and using the overload method with direction. Am I doing anything wrong here?

alt text

         #if UNITY_EDITOR
             ray = Camera.main.ScreenPointToRay(Input.mousePosition);
         #else
             ray = Camera.main.ScreenPointToRay(Input.GetTouch(0).position);
         #endif

         if(Physics.Raycast(ray, out hitInfo, 51f)){
             if(hitInfo.collider.tag == "Tile"){
                 selectTile = hitInfo.collider.name.Split(',');
                 logic.checkTile(int.Parse(selectTile[1]), int.Parse(selectTile[2]));
                 Debug.Log(selectTile[1] + ", " + selectTile[2]);
             }
         }


Comment
Add comment · Show 1
10 |3000 characters needed characters left characters exceeded
▼
  • Viewable by all users
  • Viewable by moderators
  • Viewable by moderators and the original poster
  • Advanced visibility
Viewable by all users
avatar image robertbu · May 02, 2013 at 01:57 PM 0
Share

I don't see any issues with the code. Verify a couple of things. You can use Debug.DrawRay() to draw the ray and verify the position. You could also verify your na$$anonymous$$g scheme by hiding the tile you click on.

 hitInfo.collider.renderer.enabled = false;

If the ray is going to the right place and the na$$anonymous$$g scheme is correct, check the size of your colliders. $$anonymous$$ake sure the collider size matches the tile size. If you have an oversized collider then you might get this behavior.
