No lighting and shadows in water shader - Vertex Displacement

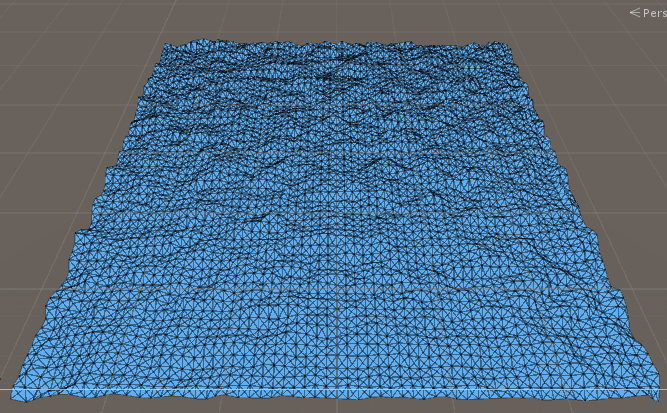

Hello everybody, I'm very new to shaders and I've run into an issue. I'm writing a water shader which combines vertex displacement and a toon surface shader (which uses a custom lighting function). Both the toon shader and vertex displacement work as expected, but when combined, I lose all shading and the model is one solid colour. If I turn shaded-wireframe it's clear that the model isn't just a flat plane.
Here's the shader I'm using (a simplified version of the improved toon shader from ronja-tutorials)
Shader "Custom/Toon SHader" {
Properties {
[Header(Colors)]
_MainColor ("Main Color", Color) = (1,1,1,1)
_ShadowColor ("Shadow Color", Color) = (0, 0, 0, 1)
_SpecularColor ("Specular Color", Color) = (1,1,1,1)
[HDR] _EmissionColor ("Emission Color", color) = (0 ,0 ,0 , 1)
[Header(Shadow Settings)]
[IntRange] _StepAmount ("Shadow Steps", Range(1, 16)) = 2
_StepWidth ("Step Size", Range(0, 1)) = 0.25
//_SpecularSize ("Specular Size", Range(0, 1)) = 0.1
//_SpecularFalloff ("Specular Falloff", Range(0, 2)) = 1
[Header(Textures)]
_MainTex ("Texture", 2D) = "white" {}
[Header(Vertex Parameters)]
_NoiseTex ("Noise Texture", 2D) = "white" {}
_NoiseIntensity ("Noise Intensity", Range(0, 10)) = 2
}
SubShader {
Tags { "RenderType"="Opaque" }
LOD 200
CGPROGRAM
// Physically based Standard lighting model, and enable shadows on all light types
#pragma surface surf Stepped fullforwardshadows vertex:vert
// Use shader model 3.0 target, to get nicer looking lighting
#pragma target 3.0
fixed4 _MainColor;
fixed4 _ShadowColor;
half3 _EmissionColor;
fixed4 _SpecularColor;
sampler2D _MainTex;
float _StepWidth;
float _StepAmount;
sampler2D _NoiseTex;
float _NoiseIntensity;
void vert (inout appdata_base v)
{
float r = tex2Dlod(_NoiseTex, float4(v.texcoord.xy, 0, 0)).r * _NoiseIntensity;
float g = tex2Dlod(_NoiseTex, float4(v.texcoord.xy, 0, 0)).g * _NoiseIntensity;
float time = _SinTime.w;
v.vertex.y -= lerp(r, g, time);
}
// Custom lighting function, must be prefixed by "Lighting"
float4 LightingStepped(SurfaceOutput s, float3 lightDir, half3 viewDir, float shadowAttenuation){
// dot is the Dot Product.
// Returns 1 if the vectors are facing the same way, and -1 if facing opposite ways. (assuming they are all normalized)
float lightDirection = dot(s.Normal, lightDir);
// Shadow Steps
lightDirection = lightDirection / _StepWidth;
float lightIntensity = ceil(lightDirection);
lightIntensity = lightIntensity / _StepAmount;
lightIntensity = saturate(lightIntensity);
// Step returns 0 if the first argument is greater, and 1 otherwise.
// In this case, 0 represents the middle ground, and light intensity will either be 1 or 0
//lightIntensity = step(0, lightDirection);
#ifdef USING_DIRECTIONAL_LIGHT
//for directional lights, get a hard cut in the middle of the shadow attenuation
float attenuationChange = fwidth(shadowAttenuation) * 0.5;
float shadow = smoothstep(0.5 - attenuationChange, 0.5 + attenuationChange, shadowAttenuation);
#else
//for other light types (point, spot), put the cutoff near black, so the falloff doesn't affect the range
float attenuationChange = fwidth(shadowAttenuation);
float shadow = smoothstep(0, attenuationChange, shadowAttenuation);
#endif
lightIntensity = lightIntensity * shadow;
float4 color;
color.rgb = s.Albedo * lightIntensity * _LightColor0.rgb;
color.a = 1;
return color;
}
struct Input {
float2 uv_MainTex;
};
void surf (Input i, inout SurfaceOutput o) {
//sample and tint albedo texture
fixed4 col = tex2D(_MainTex, i.uv_MainTex);
col *= _MainColor;
o.Albedo = col.rgb;
float3 shadowColor = col.rgb * _ShadowColor;
o.Emission = _EmissionColor + shadowColor;
}
ENDCG
}
FallBack "Diffuse"
}
I'm using this shader on a procedural mesh that is just a large, flat plane. It seems like the lighting and shadows are calculated for the flat plane, and then the displacement happens afterwards. Is there a way to force the vertex displacement to happen before the lighting? Or is this an entirely different problem? Thanks in advance!
