Question by GameDev_Chuck · Mar 15, 2018 at 07:46 PM · shaders

Is it possible to combine surface and vertex shaders?

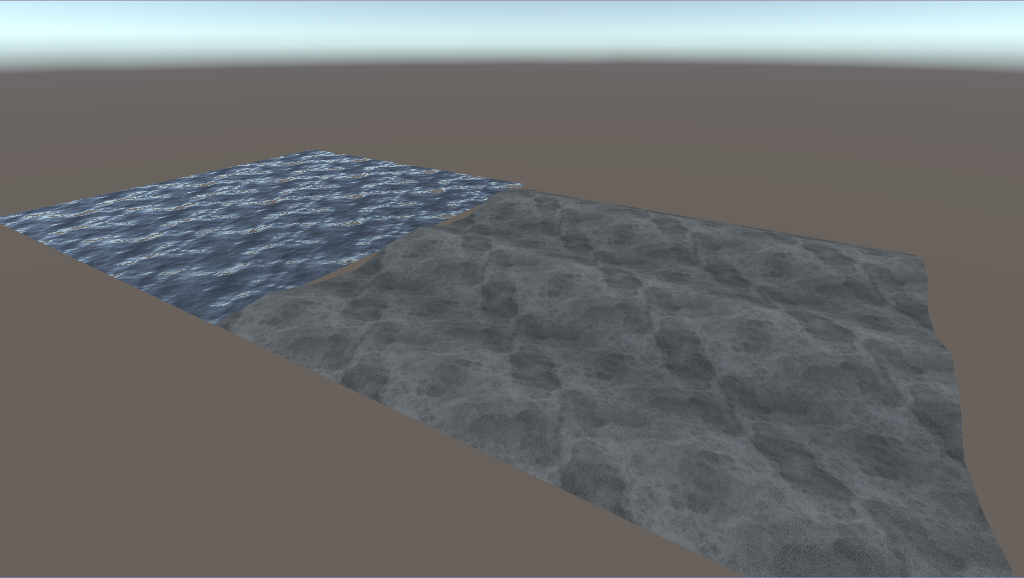

Hello, I'm new to shaders but am trying to learn. Currently, I'm attempting to make an ocean shader. So far I've created a surface shader that scrolls a single normal map in three different directions, and have a vertex shader from Unity 5.x Shaders and Effects Cookbook that rolls a sine wave function across a plane. Here's what they look like:

alt text

What I would like to do is combine them. Is this possible? Thanks in advance...

Also, here's the shaders if interested:

 Shader "Custom/SeaShader" {
     Properties {
         _Color ("Color", Color) = (1,1,1,1)
         _MainTex ("Albedo (RGB)", 2D) = "white" {}
         _NormalTex("Normal Map 1", 2D) = "bump" {}
         _Glossiness ("Smoothness", Range(0,1)) = 0.5
         _Metallic ("Metallic", Range(0,1)) = 0.0

         _ScrollXSpeedN1 ("N1 X Scroll Speed", Range(-10, 10)) = -0.5
         _ScrollYSpeedN1 ("N1 Y Scroll Speed", Range(-10, 10)) = 0.5

         _ScrollXSpeedN2 ("N2 X Scroll Speed", Range(-10, 10)) = 0.5
         _ScrollYSpeedN2 ("N2 Y Scroll Speed", Range(-10, 10)) = 0.5

         _ScrollXSpeedN3 ("N3 X Scroll Speed", Range(-10, 10)) = 0
         _ScrollYSpeedN3 ("N3 Y Scroll Speed", Range(-10, 10)) = -0.5
     }
     SubShader {
         Tags { "RenderType"="Opaque" }
         LOD 200

         CGPROGRAM
         // Physically based Standard lighting model, and enable shadows on all light types
         #pragma surface surf Standard fullforwardshadows

         // Use shader model 3.0 target, to get nicer looking lighting
         #pragma target 3.0

         sampler2D _MainTex;

         struct Input {
             float2 uv_MainTex;
             float2 uv_NormalTex;
         };

         sampler2D _NormalTex;
         half _Glossiness;
         half _Metallic;
         fixed4 _Color;

         fixed _ScrollXSpeedN1;
         fixed _ScrollYSpeedN1;
         fixed _ScrollXSpeedN2;
         fixed _ScrollYSpeedN2;
         fixed _ScrollXSpeedN3;
         fixed _ScrollYSpeedN3;

         // Add instancing support for this shader. You need to check 'Enable Instancing' on materials that use the shader.
         // See https://docs.unity3d.com/Manual/GPUInstancing.html for more information about instancing.
         // #pragma instancing_options assumeuniformscaling
         UNITY_INSTANCING_CBUFFER_START(Props)
             // put more per-instance properties here
         UNITY_INSTANCING_CBUFFER_END

         void surf (Input IN, inout SurfaceOutputStandard o) {

             //Create separate variables to store UVs
             //before passing to tex2D() function
             fixed2 scrolledUV1 = IN.uv_MainTex;
             fixed2 scrolledUV2 = IN.uv_MainTex;
             fixed2 scrolledUV3 = IN.uv_MainTex;

             //Create variables that store individual
             //x and y components for the UV's scaled by time

             fixed n1XScrollValue = _ScrollXSpeedN1 * _Time;
             fixed n1YScrollValue = _ScrollYSpeedN1 * _Time;
             fixed n2XScrollValue = _ScrollXSpeedN2 * _Time;
             fixed n2YScrollValue = _ScrollYSpeedN2 * _Time;
             fixed n3XScrollValue = _ScrollXSpeedN3 * _Time;
             fixed n3YScrollValue = _ScrollYSpeedN3 * _Time;

             //Apply final UV offset
             scrolledUV1 += fixed2(n1XScrollValue, n1YScrollValue);
             scrolledUV2 += fixed2(n2XScrollValue, n2YScrollValue);
             scrolledUV3 += fixed2(n3XScrollValue, n3YScrollValue);

             //Apply textures and tint
             half4 c = tex2D(_MainTex, scrolledUV1) * _Color;

             // Albedo comes from a texture tinted by color
             o.Albedo = c.rgb;
             // Metallic and smoothness come from slider variables
             o.Metallic = _Metallic;
             o.Smoothness = _Glossiness;
             o.Alpha = c.a;

             float3 normalMap = UnpackNormal(tex2D(_NormalTex, scrolledUV1) + (tex2D(_NormalTex, scrolledUV2)*2-1)) + (tex2D(_NormalTex, scrolledUV3)*2-1);
             o.Normal = normalMap.rgb;
         }
         ENDCG
     }
     FallBack "Diffuse"
 }


 Shader "Custom/WaveShader" {
     Properties {
         _MainTex ("Albedo (RGB)", 2D) = "white" {}
         _Color ("Color", Color) = (1,1,1,1)
         _tintAmount ("Tint Amount", Range(0, 1)) = 0.5
         _ColorA ("Color A", Color) = (1,1,1,1)
         _ColorB ("Color B", Color) = (1,1,1,1)
         _Speed ("Wave Speed", Range(0.1, 80)) = 5
         _Frequency ("Wave Frequency", Range(0, 5)) = 2
         _Amplitude ("Wave Amplitude", Range(-1, 1)) = 1

     }
     SubShader {
         Tags { "RenderType"="Opaque" }
         LOD 200

         CGPROGRAM
         // Physically based Standard lighting model, and enable shadows on all light types
         #pragma surface surf Lambert vertex:vert

         // Use shader model 3.0 target, to get nicer looking lighting
         #pragma target 3.0

         sampler2D _MainTex;
         float4 _ColorA;
         float4 _ColorB;
         float _tintAmount;
         float _Speed;
         float _Frequency;
         float _Amplitude;
         //float _OffsetVal;
         fixed4 _Color;

         struct Input {
             float2 uv_MainTex;
             float3 vertColor;
         };

         void vert(inout appdata_full v, out Input o)
         {
             UNITY_INITIALIZE_OUTPUT(Input,o);
             float time = _Time * _Speed;
             float waveValueA = sin(time + v.vertex.x * _Frequency) * _Amplitude;

             v.vertex.xyz = float3(v.vertex.x, v.vertex.y + waveValueA, v.vertex.z);
             v.normal = normalize(float3(v.normal.x + waveValueA, v.normal.y, v.normal.z));
             o.vertColor = float3(waveValueA, waveValueA, waveValueA);
         }

         // Add instancing support for this shader. You need to check 'Enable Instancing' on materials that use the shader.
         // See https://docs.unity3d.com/Manual/GPUInstancing.html for more information about instancing.
         // #pragma instancing_options assumeuniformscaling
         UNITY_INSTANCING_CBUFFER_START(Props)
             // put more per-instance properties here
         UNITY_INSTANCING_CBUFFER_END

         void surf (Input IN, inout SurfaceOutput o)
         {
             half4 c = tex2D(_MainTex, IN.uv_MainTex);
             float3 tintColor = lerp(_ColorA, _ColorB, IN.vertColor).rgb;

             // Albedo comes from a texture tinted by color
             //fixed4 c = tex2D (_MainTex, IN.uv_MainTex) * _Color;
             o.Albedo = c.rgb * (tintColor * _tintAmount);
             //o.Albedo = c.rgb;

             // Metallic and smoothness come from slider variables
             o.Alpha = c.a;
         }
         ENDCG
     }
     FallBack "Diffuse"
 }

Comment
Add comment
10 |3000 characters needed characters left characters exceeded
▼
  • Viewable by all users
  • Viewable by moderators
  • Viewable by moderators and the original poster
  • Advanced visibility
Viewable by all users

1 Reply

· Add your reply
  • Sort:
avatar image
1

Answer by Remy_Unity · Mar 16, 2018 at 12:13 PM

You can, and that's exactly what is done in the exemples : look at "Normal Extrusion with Vertex Modifier" of https://docs.unity3d.com/Manual/SL-SurfaceShaderExamples.html .

Also, if you take a look at your "Custom/WaveShader", you'll notice it's already a surface shader :-). The #pragma surf is here to declare a surface shader ; Lamber is the lighting model ; vertex:vert declares the vertex function, and that's what you are looking for.
