Shader error Unity 2019.2.1f1

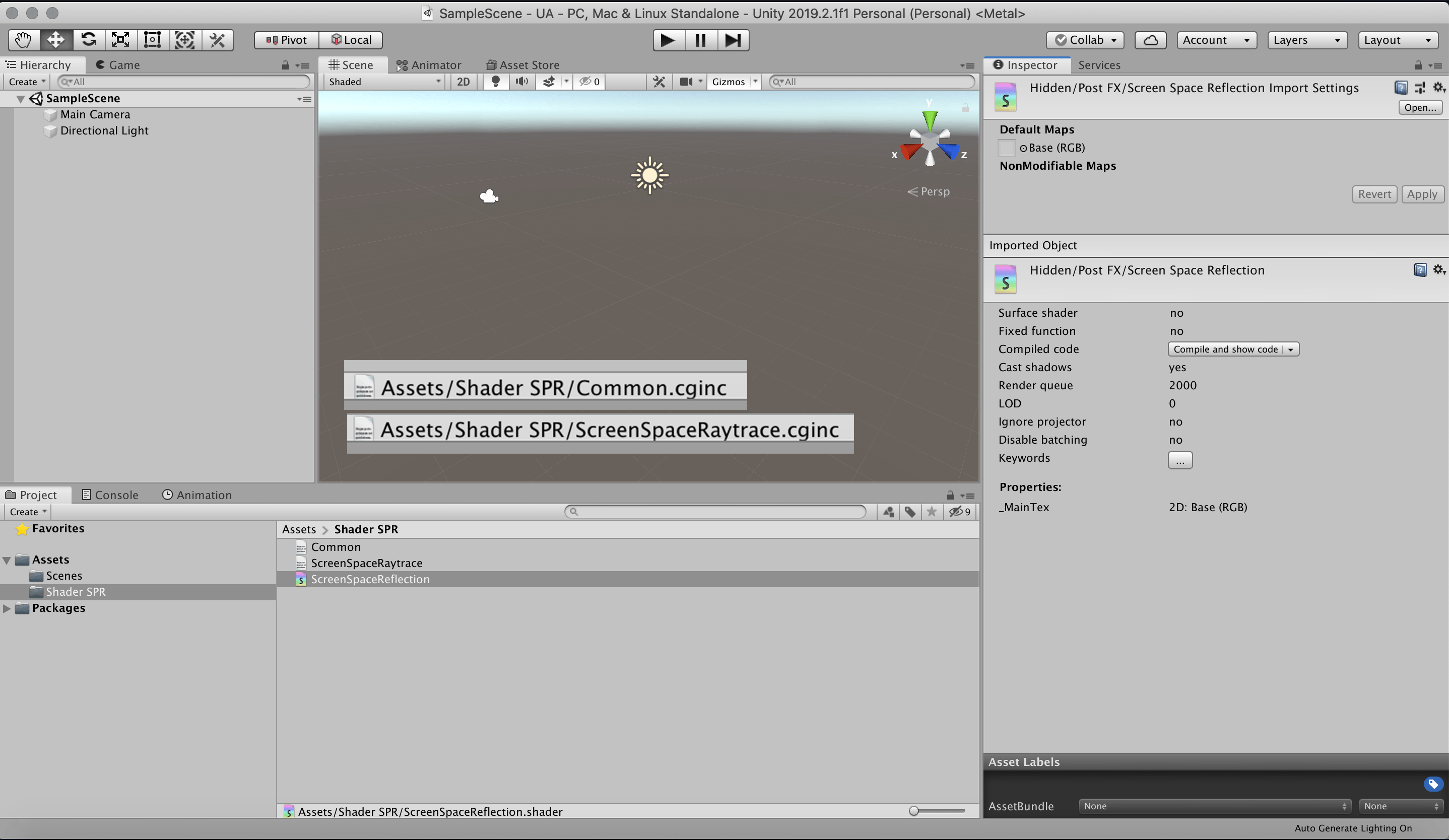

Hi, I'm having several issues compiling with this Shader error. Please help fix. I tried to replace the sampler2D_float _CameraDepthTexture; with UNITY_DECLARE_DEPTH_TEXTURE(_CameraDepthTexture); but it's not working for this file.
/**
\author Michael Mara and Morgan McGuire, Casual Effects. 2015.
*/
Shader "Hidden/Post FX/Screen Space Reflection"
{
Properties
{
_MainTex ("Base (RGB)", 2D) = "white" {}
}
CGINCLUDE
#pragma target 3.0
#include "UnityCG.cginc"
#include "UnityPBSLighting.cginc"
#include "UnityStandardBRDF.cginc"
#include "UnityStandardUtils.cginc"
#include "Common.cginc"
#include "ScreenSpaceRaytrace.cginc"
float4 _ProjInfo;
float4x4 _WorldToCameraMatrix;
float4x4 _CameraToWorldMatrix;
float4x4 _ProjectToPixelMatrix;
float2 _ScreenSize;
float2 _ReflectionBufferSize;
float2 _InvScreenSize;
float3 _CameraClipInfo;
sampler2D _CameraGBufferTexture0;
sampler2D _CameraGBufferTexture1;
sampler2D _CameraGBufferTexture2;
sampler2D _CameraGBufferTexture3;
sampler2D _CameraReflectionsTexture;
float _CurrentMipLevel;
float _RayStepSize;
float _MaxRayTraceDistance;
float _LayerThickness;
float _FresnelFade;
float _FresnelFadePower;
float _ReflectionBlur;
int _HalfResolution;
int _TreatBackfaceHitAsMiss;
int _AllowBackwardsRays;
// RG: SS Hitpoint of ray
// B: distance ray travelled, used for mip-selection in the final resolve
// A: confidence value
sampler2D _HitPointTexture;
sampler2D _FinalReflectionTexture;
// RGB: camera-space normal (encoded in [0-1])
// A: Roughness
sampler2D _NormalAndRoughnessTexture;
int _EnableRefine;
int _AdditiveReflection;
float _ScreenEdgeFading;
int _MaxSteps;
int _BilateralUpsampling;
float _MaxRoughness;
float _RoughnessFalloffRange;
float _SSRMultiplier;
float _FadeDistance;
int _TraceBehindObjects;
int _UseEdgeDetector;
int _HighlightSuppression;
/** The height in pixels of a 1m object if viewed from 1m away. */
float _PixelsPerMeterAtOneMeter;
// For temporal filtering:
float4x4 _CurrentCameraToPreviousCamera;
sampler2D _PreviousReflectionTexture;
sampler2D _PreviousCSZBuffer;
float _TemporalAlpha;
int _UseTemporalConfidence;
struct v2f
{
float4 pos : SV_POSITION;
float2 uv : TEXCOORD0;
float2 uv2 : TEXCOORD1;
};
v2f vert( appdata_img v )
{
v2f o;
o.pos = UnityObjectToClipPos(v.vertex);
o.uv = v.texcoord.xy;
o.uv2 = v.texcoord.xy;
#if UNITY_UV_STARTS_AT_TOP
if (_MainTex_TexelSize.y < 0)
o.uv2.y = 1.0 - o.uv2.y;
#endif
return o;
}
float2 mipToSize(int mip)
{
return floor(_ReflectionBufferSize * exp2(-mip));
}
float3 ReconstructCSPosition(float2 S, float z)
{
float linEyeZ = -LinearEyeDepth(z);
return float3((((S.xy * _MainTex_TexelSize.zw)) * _ProjInfo.xy + _ProjInfo.zw) * linEyeZ, linEyeZ);
}
/** Read the camera-space position of the point at screen-space pixel ssP */
float3 GetPosition(float2 ssP)
{
float3 P;
P.z = SAMPLE_DEPTH_TEXTURE(_CameraDepthTexture, ssP.xy);
// Offset to pixel center
P = ReconstructCSPosition(float2(ssP) /*+ float2(0.5, 0.5)*/, P.z);
return P;
}
float applyEdgeFade(float2 tsP, float fadeStrength)
{
float maxFade = 0.1;
float2 itsP = float2(1.0, 1.0) - tsP;
float dist = min(min(itsP.x, itsP.y), min(tsP.x, tsP.x));
float fade = dist / (maxFade*fadeStrength + 0.001);
fade = max(min(fade, 1.0), 0.0);
fade = pow(fade, 0.2);
return fade;
}
float3 csMirrorVector(float3 csPosition, float3 csN)
{
float3 csE = -normalize(csPosition.xyz);
float cos_o = dot(csN, csE);
float3 c_mi = normalize((csN * (2.0 * cos_o)) - csE);
return c_mi;
}
float4 fragRaytrace(v2f i, int stepRate)
{
float2 ssP = i.uv2.xy;
float3 csPosition = GetPosition(ssP);
float smoothness = tex2D(_CameraGBufferTexture1, ssP).a;
if (csPosition.z < -100.0 || smoothness == 0.0)
{
return float4(0.0,0.0,0.0,0.0);
}
float3 wsNormal = tex2D(_CameraGBufferTexture2, ssP).rgb * 2.0 - 1.0;
int2 ssC = int2(ssP * _ScreenSize);
float3 csN = mul((float3x3)(_WorldToCameraMatrix), wsNormal);
float3 csRayDirection = csMirrorVector(csPosition, csN);
if (_AllowBackwardsRays == 0 && csRayDirection.z > 0.0)
{
return float4(0.0, 0.0, 0.0, 0.0);
}
float maxRayTraceDistance = _MaxRayTraceDistance;
float jitterFraction = 0.0f;
float layerThickness = _LayerThickness;
int maxSteps = _MaxSteps;
// Bump the ray more in world space as it gets farther away (and so each pixel covers more WS distance)
float rayBump = max(-0.01*csPosition.z, 0.001);
float2 hitPixel;
float3 csHitPoint;
float stepCount;
bool wasHit = castDenseScreenSpaceRay
(csPosition + (csN) * rayBump,
csRayDirection,
_ProjectToPixelMatrix,
_ScreenSize,
_CameraClipInfo,
jitterFraction,
maxSteps,
layerThickness,
maxRayTraceDistance,
hitPixel,
stepRate,
_TraceBehindObjects == 1,
csHitPoint,
stepCount);
float2 tsPResult = hitPixel / _ScreenSize;
float rayDist = dot(csHitPoint - csPosition, csRayDirection);
float confidence = 0.0;
if (wasHit)
{
confidence = Pow2(1.0 - max(2.0*float(stepCount) / float(maxSteps) - 1.0, 0.0));
confidence *= clamp(((_MaxRayTraceDistance - rayDist) / _FadeDistance), 0.0, 1.0);
// Fake fresnel fade
float3 csE = -normalize(csPosition.xyz);
confidence *= max(0.0, lerp(pow(abs(dot(csRayDirection, -csE)), _FresnelFadePower), 1, 1.0 - _FresnelFade));
if (_TreatBackfaceHitAsMiss > 0)
{
float3 wsHitNormal = tex2Dlod(_CameraGBufferTexture2, float4(tsPResult, 0, 0)).rgb * 2.0 - 1.0;
float3 wsRayDirection = mul(_CameraToWorldMatrix, float4(csRayDirection, 0)).xyz;
if (dot(wsHitNormal, wsRayDirection) > 0)
{
confidence = 0.0;
}
}
}
// Fade out reflections that hit near edge of screen, to prevent abrupt appearance/disappearance when object go off screen
// Fade out reflections that hit near edge of screen,
// to prevent abrupt appearance/disappearance when object go off screen
float vignette = applyEdgeFade(tsPResult, _ScreenEdgeFading);
confidence *= vignette;
confidence *= vignette;
return float4(tsPResult, rayDist, confidence);
}
float4 fragComposite(v2f i) : SV_Target
{
// Pixel being shaded
float2 tsP = i.uv2.xy;
// View space point being shaded
float3 C = GetPosition(tsP);
// Final image before this pass
float4 gbuffer3 = tex2D(_MainTex, i.uv);
float4 specEmission = float4(0.0,0.0,0.0,0.0);
float3 specColor = tex2D(_CameraGBufferTexture1, tsP).rgb;
float roughness = tex2D(_CameraGBufferTexture1, tsP).a;
float4 reflectionTexel = tex2D(_FinalReflectionTexture, tsP);
float4 gbuffer0 = tex2D(_CameraGBufferTexture0, tsP);
// Let core Unity functions do the dirty work of applying the BRDF
float3 baseColor = gbuffer0.rgb;
float occlusion = gbuffer0.a;
float oneMinusReflectivity;
baseColor = EnergyConservationBetweenDiffuseAndSpecular(baseColor, specColor, oneMinusReflectivity);
float3 wsNormal = tex2D(_CameraGBufferTexture2, tsP).rgb * 2.0 - 1.0;
float3 csEyeVec = normalize(C);
float3 eyeVec = mul(_CameraToWorldMatrix, float4(csEyeVec, 0)).xyz;
float3 worldPos = mul(_CameraToWorldMatrix, float4(C, 1)).xyz;
float cos_o = dot(wsNormal, eyeVec);
float3 w_mi = -normalize((wsNormal * (2.0 * cos_o)) - eyeVec);
float3 incomingRadiance = reflectionTexel.rgb;
UnityLight light;
light.color = 0;
light.dir = 0;
#if UNITY_VERSION < 550
light.ndotl = 0;
#endif
UnityIndirect ind;
ind.diffuse = 0;
ind.specular = incomingRadiance;
float3 ssrResult = UNITY_BRDF_PBS (0, specColor, oneMinusReflectivity, roughness, wsNormal, -eyeVec, light, ind).rgb * _SSRMultiplier;
float confidence = reflectionTexel.a;
specEmission.rgb = tex2D(_CameraReflectionsTexture, tsP).rgb;
float3 finalGlossyTerm;
// Subtract out Unity's glossy result: (we're just applying the delta)
if (_AdditiveReflection == 0)
{
gbuffer3 -= specEmission;
// We may have blown out our dynamic range by adding then subtracting the reflection probes.
// As a half-measure to fix this, simply clamp to zero
gbuffer3 = max(gbuffer3, 0);
finalGlossyTerm = lerp(specEmission.rgb, ssrResult, saturate(confidence));
}
else
{
finalGlossyTerm = ssrResult*saturate(confidence);
}
finalGlossyTerm *= occlusion;
// Additively blend the glossy GI result with the output buffer
return gbuffer3 + float4(finalGlossyTerm, 0);
}
float roughnessWeight(float midpointRoughness, float tapRoughness)
{
return (1.0 - sqrt(sqrt(abs(midpointRoughness-tapRoughness))));
}
float normalWeight(float3 midpointNormal, float3 tapNormal)
{
return clamp(dot(midpointNormal, tapNormal), 0, 1);
}
float highlightDecompression(float x)
{
return x / (1.0 - x);
}
float3 highlightDecompression(float3 x)
{
return float3(
highlightDecompression(x.x),
highlightDecompression(x.y),
highlightDecompression(x.z)
);
}
float highlightCompression(float x)
{
return x / (1.0 + x);
}
float3 highlightCompression(float3 x)
{
return float3(
highlightCompression(x.x),
highlightCompression(x.y),
highlightCompression(x.z)
);
}
float4 _Axis;
float4 fragGBlur(v2f i) : SV_Target
{
int radius = 4;
// Pixel being shaded
float2 tsP = i.uv2.xy;
float weightSum = 0.0;
float gaussWeights[5] = { 0.225, 0.150, 0.110, 0.075, 0.0525 };//{0.225, 0.150, 0.110, 0.075, 0.0525};
float4 resultSum = float4(0.0, 0.0, 0.0, 0.0);
float4 unweightedResultSum = float4(0.0, 0.0, 0.0, 0.0);
float4 nAndRough = tex2D(_NormalAndRoughnessTexture, tsP);
float midpointRoughness = nAndRough.a;
float3 midpointNormal = nAndRough.rgb * 2 - 1;
for (int i = -radius; i <= radius; ++i)
{
float4 temp;
float tapRoughness;
float3 tapNormal;
float2 tsTap = tsP + (_Axis.xy * _MainTex_TexelSize.xy * float2(i,i)*2.0);
temp = tex2D(_MainTex, tsTap);
float weight = temp.a * gaussWeights[abs(i)];
// Bilateral filtering
// if (_ImproveCorners)
// {
nAndRough = tex2D(_NormalAndRoughnessTexture, tsTap);
tapRoughness = nAndRough.a;
tapNormal = nAndRough.rgb * 2 - 1;
weight *= normalWeight(midpointNormal, tapNormal);
// }
weightSum += weight;
if (_HighlightSuppression)
{
temp.rgb = highlightCompression(temp.rgb);
}
unweightedResultSum += temp;
resultSum += temp*weight;
}
if (weightSum > 0.01)
{
float invWeightSum = (1.0/weightSum);
// Adding the sqrt seems to decrease temporal flickering at the expense
// of having larger "halos" of fallback on rough surfaces
// Subject to change with testing. Sqrt around only half the expression is *intentional*.
float confidence = min(resultSum.a * sqrt(max(invWeightSum, 2.0)), 1.0);
float3 finalColor = resultSum.rgb * invWeightSum;
if (_HighlightSuppression)
{
finalColor = highlightDecompression(finalColor);
}
return float4(finalColor, confidence);
}
else
{
float3 finalColor = unweightedResultSum.rgb / (2 * radius + 1);
if (_HighlightSuppression)
{
finalColor = highlightDecompression(finalColor);
}
return float4(finalColor, 0.0);
}
}
sampler2D _ReflectionTexture0;
sampler2D _ReflectionTexture1;
sampler2D _ReflectionTexture2;
sampler2D _ReflectionTexture3;
sampler2D _ReflectionTexture4;
// Simulate mip maps, since we don't have NPOT mip-chains
float4 getReflectionValue(float2 tsP, int mip)
{
float4 coord = float4(tsP,0,0);
if (mip == 0)
{
return tex2Dlod(_ReflectionTexture0, coord);
}
else if (mip == 1)
{
return tex2Dlod(_ReflectionTexture1, coord);
}
else if (mip == 2)
{
return tex2Dlod(_ReflectionTexture2, coord);
}
else if (mip == 3)
{
return tex2Dlod(_ReflectionTexture3, coord);
}
else
{
return tex2Dlod(_ReflectionTexture4, coord);
}
}
sampler2D _EdgeTexture0;
sampler2D _EdgeTexture1;
sampler2D _EdgeTexture2;
sampler2D _EdgeTexture3;
sampler2D _EdgeTexture4;
// Simulate mip maps, since we don't have NPOT mip-chains
float4 getEdgeValue(float2 tsP, int mip)
{
float4 coord = float4(tsP + float2(1.0/(2 * mipToSize(mip))),0,0);
if (mip == 0)
{
return tex2Dlod(_EdgeTexture0, coord);
}
else if (mip == 1)
{
return tex2Dlod(_EdgeTexture1, coord);
}
else if (mip == 2)
{
return tex2Dlod(_EdgeTexture2, coord);
}
else if (mip == 3)
{
return tex2Dlod(_EdgeTexture3, coord);
}
else
{
return tex2Dlod(_EdgeTexture4, coord);
}
}
float2 centerPixel(float2 inputP)
{
return floor(inputP - float2(0.5,0.5)) + float2(0.5,0.5);
}
float2 snapToTexelCenter(float2 inputP, float2 texSize, float2 texSizeInv)
{
return centerPixel(inputP * texSize) * texSizeInv;
}
float4 bilateralUpsampleReflection(float2 tsP, int mip)
{
float2 smallTexSize = mipToSize(mip);
float2 smallPixelPos = tsP * smallTexSize;
float2 smallPixelPosi = centerPixel(smallPixelPos);
float2 smallTexSizeInv = 1.0 / smallTexSize;
float2 p0 = smallPixelPosi * smallTexSizeInv;
float2 p3 = (smallPixelPosi + float2(1.0, 1.0)) * smallTexSizeInv;
float2 p1 = float2(p3.x, p0.y);
float2 p2 = float2(p0.x, p3.y);
float4 V0 = getReflectionValue(p0.xy, mip);
float4 V1 = getReflectionValue(p1.xy, mip);
float4 V2 = getReflectionValue(p2.xy, mip);
float4 V3 = getReflectionValue(p3.xy, mip);
// Bilateral weights:
// Bilinear interpolation (filter distance)
float2 smallPixelPosf = smallPixelPos - smallPixelPosi;
float a0 = (1.0 - smallPixelPosf.x) * (1.0 - smallPixelPosf.y);
float a1 = smallPixelPosf.x * (1.0 - smallPixelPosf.y);
float a2 = (1.0 - smallPixelPosf.x) * smallPixelPosf.y;
float a3 = smallPixelPosf.x * smallPixelPosf.y;
float2 fullTexSize = _ReflectionBufferSize;
float2 fullTexSizeInv = 1.0 / fullTexSize;
float4 hiP0 = float4(snapToTexelCenter(p0, fullTexSize, fullTexSizeInv), 0,0);
float4 hiP3 = float4(snapToTexelCenter(p3, fullTexSize, fullTexSizeInv), 0,0);
float4 hiP1 = float4(snapToTexelCenter(p1, fullTexSize, fullTexSizeInv), 0,0);
float4 hiP2 = float4(snapToTexelCenter(p2, fullTexSize, fullTexSizeInv), 0,0);
float4 tempCenter = tex2Dlod(_NormalAndRoughnessTexture, float4(tsP, 0, 0));
float3 n = tempCenter.xyz * 2 - 1;
float4 temp0 = tex2Dlod(_NormalAndRoughnessTexture, hiP0);
float4 temp1 = tex2Dlod(_NormalAndRoughnessTexture, hiP1);
float4 temp2 = tex2Dlod(_NormalAndRoughnessTexture, hiP2);
float4 temp3 = tex2Dlod(_NormalAndRoughnessTexture, hiP3);
float3 n0 = temp0.xyz * 2 - 1;
float3 n1 = temp1.xyz * 2 - 1;
float3 n2 = temp2.xyz * 2 - 1;
float3 n3 = temp3.xyz * 2 - 1;
a0 *= normalWeight(n, n0);
a1 *= normalWeight(n, n1);
a2 *= normalWeight(n, n2);
a3 *= normalWeight(n, n3);
float r = tempCenter.a;
float r0 = temp0.a;
float r1 = temp1.a;
float r2 = temp2.a;
float r3 = temp3.a;
a0 *= roughnessWeight(r, r0);
a1 *= roughnessWeight(r, r1);
a2 *= roughnessWeight(r, r2);
a3 *= roughnessWeight(r, r3);
// Slightly offset from zero
a0 = max(a0, 0.001);
a1 = max(a1, 0.001);
a2 = max(a2, 0.001);
a3 = max(a3, 0.001);
// Nearest neighbor
// a0 = a1 = a2 = a3 = 1.0;
// Normalize the blending weights (weights were chosen so that
// the denominator can never be zero)
float norm = 1.0 / (a0 + a1 + a2 + a3);
// Blend
float4 value = (V0 * a0 + V1 * a1 + V2 * a2 + V3 * a3) * norm;
//return V0;
return value;
}
/** Explicit bilinear fetches; must be used if the reflection buffer is bound using point sampling */
float4 bilinearUpsampleReflection(float2 tsP, int mip)
{
float2 smallTexSize = mipToSize(mip);
float2 smallPixelPos = tsP * smallTexSize;
float2 smallPixelPosi = centerPixel(smallPixelPos);
float2 smallTexSizeInv = 1.0 / smallTexSize;
float2 p0 = smallPixelPosi * smallTexSizeInv;
float2 p3 = (smallPixelPosi + float2(1.0, 1.0)) * smallTexSizeInv;
float2 p1 = float2(p3.x, p0.y);
float2 p2 = float2(p0.x, p3.y);
float4 V0 = getReflectionValue(p0.xy, mip);
float4 V1 = getReflectionValue(p1.xy, mip);
float4 V2 = getReflectionValue(p2.xy, mip);
float4 V3 = getReflectionValue(p3.xy, mip);
float a0 = 1.0;
float a1 = 1.0;
float a2 = 1.0;
float a3 = 1.0;
// Bilateral weights:
// Bilinear interpolation (filter distance)
float2 smallPixelPosf = smallPixelPos - smallPixelPosi;
a0 = (1.0 - smallPixelPosf.x) * (1.0 - smallPixelPosf.y);
a1 = smallPixelPosf.x * (1.0 - smallPixelPosf.y);
a2 = (1.0 - smallPixelPosf.x) * smallPixelPosf.y;
a3 = smallPixelPosf.x * smallPixelPosf.y;
// Blend
float4 value = (V0 * a0 + V1 * a1 + V2 * a2 + V3 * a3);
return value;
}
// Unity's roughness is GGX roughness squared
float roughnessToBlinnPhongExponent(float roughness)
{
float r2 = roughness*roughness;
return 2.0f / r2*r2 - 2.0f;
}
float glossyLobeSlope(float roughness)
{
return pow(roughness, 4.0/3.0);
}
// Empirically based on our filter:
// Mip | Pixels
// --------------
// 0 | 1 no filter, so single pixel
// 1 | 17 2r + 1 filter applied once, grabbing from pixels r away in either direction (r=8, four samples times stride of 2)
// 2 | 50 2r + 1 filter applied on double size pixels, and each of those pixels had reached another r out to the side 2(2r + 1) + m_1
// 3 | 118 4(2r + 1) + m_2
// 4 | 254 8(2r + 1) + m_3
//
// Approximated by pixels = 16*2^mip-15
// rearranging we get mip = log_2((pixels + 15) / 16)
//
float filterFootprintInPixelsToMip(float footprint)
{
return log2((footprint + 15) / 16);
}
float3 ansiGradient(float t)
{
//return float3(t, t, t);
return fmod(floor(t * float3(8.0, 4.0, 2.0)), 2.0);
}
float4 fragCompositeSSR(v2f i) : SV_Target
{
// Pixel being shaded
float2 tsP = i.uv2.xy;
float roughness = 1.0-tex2D(_CameraGBufferTexture1, tsP).a;
float rayDistance = tex2D(_HitPointTexture, tsP).z;
// Get the camera space position of the reflection hit
float3 csPosition = GetPosition(tsP);
float3 wsNormal = tex2D(_CameraGBufferTexture2, tsP).rgb * 2.0 - 1.0;
float3 csN = mul((float3x3)(_WorldToCameraMatrix), wsNormal);
float3 c_mi = csMirrorVector(csPosition, csN);
float3 csHitpoint = c_mi * rayDistance + csPosition;
float gatherFootprintInMeters = glossyLobeSlope(roughness) * rayDistance;
// We could add a term that incorporates the normal
// This approximation assumes reflections happen at a glancing angle
float filterFootprintInPixels = gatherFootprintInMeters * _PixelsPerMeterAtOneMeter / csHitpoint.z;
if (_HalfResolution == 1)
{
filterFootprintInPixels *= 0.5;
}
float mip = filterFootprintInPixelsToMip(filterFootprintInPixels);
float nonPhysicalMip = pow(roughness, 3.0 / 4.0) * UNITY_SPECCUBE_LOD_STEPS;
if (_HalfResolution == 1)
{
nonPhysicalMip = nonPhysicalMip * 0.7;
}
mip = max(0, min(4, mip));
float4 result = 0.;
{
int mipMin = int(mip);
int mipMax = min(mipMin + 1, 4);
float mipLerp = mip-mipMin;
if (_BilateralUpsampling == 1)
{
result = lerp(bilateralUpsampleReflection(tsP, mipMin), bilateralUpsampleReflection(tsP, mipMax), mipLerp);
}
else
{
float4 minResult = getReflectionValue(tsP, mipMin);
float4 maxResult = getReflectionValue(tsP, mipMax);
result = lerp(minResult, maxResult, mipLerp);
result.a = min(minResult.a, maxResult.a);
}
}
result.a = min(result.a, 1.0);
float vignette = applyEdgeFade(tsP, _ScreenEdgeFading);
result.a *= vignette;
// THIS MIGHT BE SLIGHTLY WRONG, TRY STEP()
float alphaModifier = 1.0 - clamp(roughness * .3, 0., 1.);
result.a *= alphaModifier;
return result;
}
int _LastMip;
float4 fragMin(v2f i) : SV_Target
{
float2 tsP = i.uv2.xy;
float2 lastTexSize = mipToSize(_LastMip);
float2 lastTexSizeInv = 1.0 / lastTexSize;
float2 p00 = snapToTexelCenter(tsP, lastTexSize, lastTexSizeInv);
float2 p11 = p00 + lastTexSizeInv;
return min(
min(tex2D(_MainTex, p00), tex2D(_MainTex, p11)),
min(tex2D(_MainTex, float2(p00.x, p11.y)), tex2D(_MainTex, float2(p11.x, p00.y)))
);
}
float4 fragResolveHitPoints(v2f i) : SV_Target
{
float2 tsP = i.uv2.xy;
float4 temp = tex2D(_HitPointTexture, tsP);
float2 hitPoint = temp.xy;
float confidence = temp.w;
float3 colorResult = confidence > 0.0 ? tex2D(_MainTex, hitPoint).rgb : tex2D(_CameraReflectionsTexture, tsP).rgb;
if (any(isnan(colorResult)))
colorResult = float3(0.0, 0.0, 0.0);
// As of 11/29/2015, on Unity 5.3 on a Windows 8.1 computer with a NVIDIA GeForce 980,
// with driver 347.62, the above check does not actually work to get rid of NaNs!
// So we add this "redundant" check.
if (!all(isfinite(colorResult)))
colorResult = float3(0.0, 0.0, 0.0);
return float4(colorResult, confidence);
}
float4 fragBilatKeyPack(v2f i) : SV_Target
{
float2 tsP = i.uv2.xy;
float3 csN = tex2D(_CameraGBufferTexture2, tsP).xyz;
float roughness = tex2D(_CameraGBufferTexture1, tsP).a;
return float4(csN, roughness);
}
float4 fragDepthToCSZ(v2f i) : SV_Target
{
float depth = SAMPLE_DEPTH_TEXTURE(_CameraDepthTexture, i.uv2.xy);
return float4(-LinearEyeDepth(depth), 0.0, 0.0, 0.0);
}
static const int NUM_POISSON_TAPS = 12;
// Same as used in CameraMotionBlur.shader
static const float2 poissonSamples[NUM_POISSON_TAPS] =
{
float2(-0.326212,-0.40581),
float2(-0.840144,-0.07358),
float2(-0.695914,0.457137),
float2(-0.203345,0.620716),
float2(0.96234,-0.194983),
float2(0.473434,-0.480026),
float2(0.519456,0.767022),
float2(0.185461,-0.893124),
float2(0.507431,0.064425),
float2(0.89642,0.412458),
float2(-0.32194,-0.932615),
float2(-0.791559,-0.59771)
};
float4 fragFilterSharpReflections(v2f i) : SV_Target
{
// Could improve perf by not computing blur when we won't be sampling the highest level anyways
float2 tsP = i.uv2.xy;
float4 sum = 0.0;
float sampleRadius = _MainTex_TexelSize.xy * _ReflectionBlur;
for (int i = 0; i < NUM_POISSON_TAPS; i++)
{
float2 p = tsP + poissonSamples[i] * sampleRadius;
float4 tap = tex2D(_MainTex, p);
if (_HighlightSuppression)
{
tap.rgb = highlightCompression(tap.rgb);
}
sum += tap;
}
float4 result = sum / float(NUM_POISSON_TAPS);
if (_HighlightSuppression)
{
result.rgb = highlightDecompression(result.rgb);
}
return result;
}
ENDCG
SubShader
{
ZTest Always Cull Off ZWrite Off
// 0: Raytrace
Pass
{
CGPROGRAM
#pragma exclude_renderers gles xbox360 ps3
#pragma vertex vert
#pragma fragment fragRaytrace1
float4 fragRaytrace1(v2f i) : SV_Target
{
return fragRaytrace(i, _RayStepSize);
}
ENDCG
}
// 1: Composite
Pass
{
CGPROGRAM
#pragma exclude_renderers gles xbox360 ps3
#pragma vertex vert
#pragma fragment fragComposite
ENDCG
}
// 2: GBlur
Pass
{
CGPROGRAM
#pragma exclude_renderers gles xbox360 ps3
#pragma vertex vert
#pragma fragment fragGBlur
ENDCG
}
// 3: CompositeSSR
Pass
{
CGPROGRAM
#pragma exclude_renderers gles xbox360 ps3
#pragma vertex vert
#pragma fragment fragCompositeSSR
ENDCG
}
// 4: Min mip generation
Pass
{
CGPROGRAM
#pragma exclude_renderers gles xbox360 ps3
#pragma vertex vert
#pragma fragment fragMin
ENDCG
}
// 5: Hit point texture to reflection buffer
Pass
{
CGPROGRAM
#pragma exclude_renderers gles xbox360 ps3
#pragma vertex vert
#pragma fragment fragResolveHitPoints
ENDCG
}
// 6: Pack Bilateral Filter Keys in single buffer
Pass
{
CGPROGRAM
#pragma exclude_renderers gles xbox360 ps3
#pragma vertex vert
#pragma fragment fragBilatKeyPack
ENDCG
}
// 7: Blit depth information as camera space Z
Pass
{
CGPROGRAM
#pragma exclude_renderers gles xbox360 ps3
#pragma vertex vert
#pragma fragment fragDepthToCSZ
ENDCG
}
// 8: Filter the highest quality reflection buffer
Pass
{
CGPROGRAM
#pragma exclude_renderers gles xbox360 ps3
#pragma vertex vert
#pragma fragment fragFilterSharpReflections
ENDCG
}
}
Fallback "Diffuse"
}
Answer by dan_wipf · Aug 29, 2019 at 08:33 AM
@vikparthiban I found the Shader on Github.
Important things to know about this shader, so it'll work as well on your Machine are:
place the cginc (Common.cginc & ScreenSpaceRaytrace.cginc) files inside the same Folder as the ScreenSpaceReflection.shader is!
You might reimport the Shader manually after importing the 3 Files to your Project.
If you copy paste the code, be sure you copy the cginc files into a cginc file and Name it correctly!
I didn't modify anything on the shader files, so my best guess is that you did mess up something with the cginc files.
tested on 2019.1.10f1 & 2019.2.1f1 => not HDRP / LWRP compatible
Picture of how it should looks like:
(I've included the path of all files, so you see what they should be named)
Answer by EntertainmentEnterprise · Oct 11, 2020 at 09:28 AM
We're you ever able to find the answer for this shader? I can't even fi d the declaration of _CameraDepthTexture so that I can replace it with that. It is the final error in my project as all others worked fine with the modification. I'd really love to solve this and move on.
Answer by bianster · Apr 13 at 08:36 AM
I fixed this compile error by replacing line 62 (with tex2Dlod) with:
sceneZ = SAMPLE_DEPTH_TEXTURE_LOD(_CameraDepthTexture, float4(hitPixel * invSize,0,0));
Your answer
