Collider2D.Cast precision

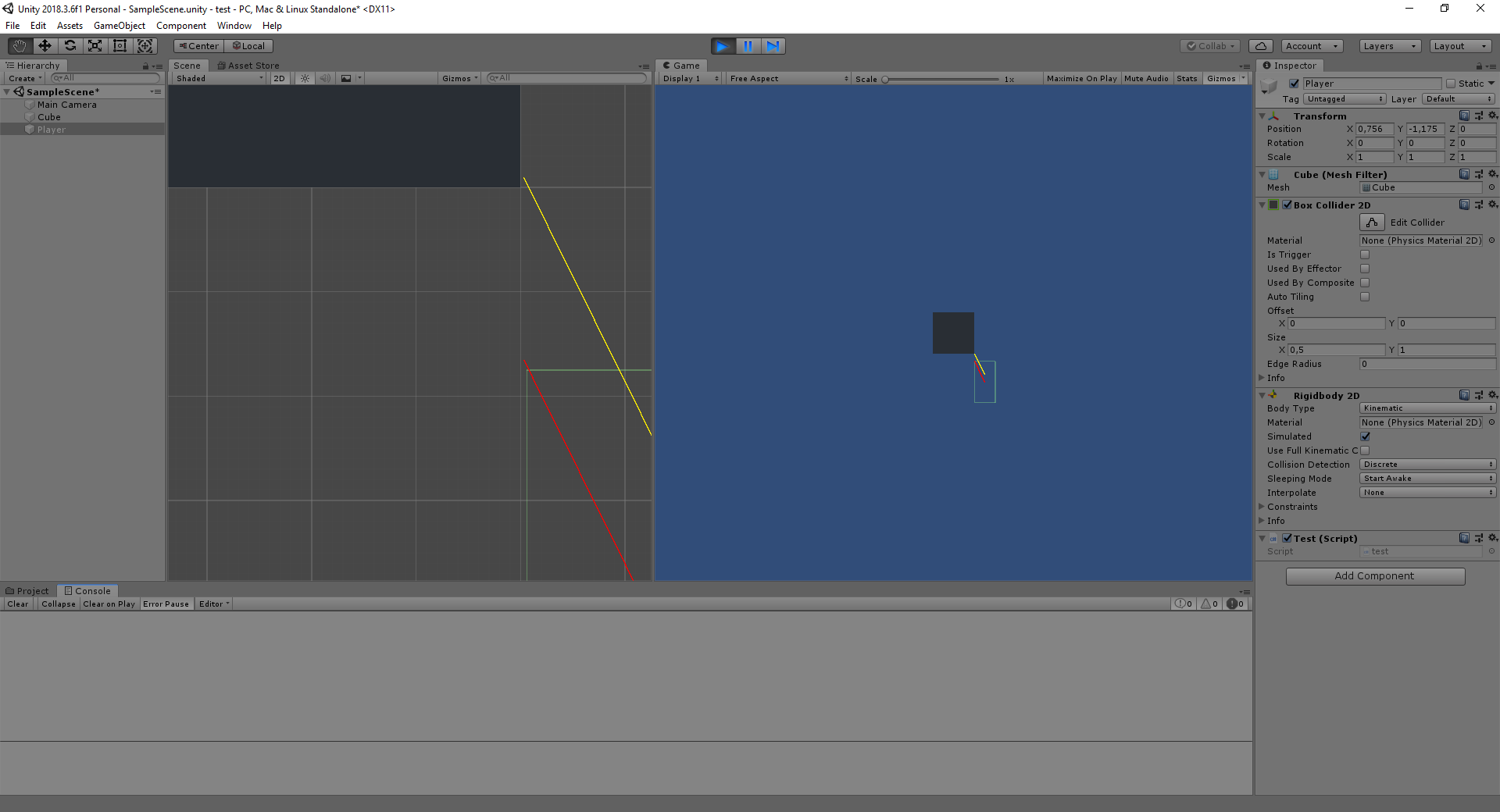

I have a question about Collider2D.Cast function, it seems like while working with small numbers it returns collisions even if there shouldn't be any. Here is a picture, and some code:
using UnityEngine;
public class test : MonoBehaviour
{
BoxCollider2D boxCollider;
void Awake()
{
boxCollider = GetComponent<BoxCollider2D>();
}
void FixedUpdate()
{
RaycastHit2D[] hits = new RaycastHit2D[10];
boxCollider.Cast(Vector2.up, hits, 2f);
foreach(RaycastHit2D hit in hits)
{
if (!hit) break;
Debug.DrawRay(transform.position, hit.point - hit.centroid, Color.red);
Debug.DrawLine(hit.centroid, hit.point, Color.yellow);
}
}
}
As you can see, |x| distance between two objects is 0.006, but collision is still detected. Is there something like Collider thickness? Also why hit.point - hit.centroid gives point outside of collider? I wanted to check where collision happened on my collider (left, right, up, down), but around the corners its inconsistent (looks like instead i should check for the same but not on a player collider but rather box that was hit, since it looks more precise and then react to that).
TLDR: I could be wrong about all of this, and it may be that Unity just has issues with Physics and smaller objects.... but...
I believe it's because you're boxcasting, and the box is counted from center out, so it moves from center out, so half the extents of the box will find a collider before the center does. IE if you're boxcast is an extent of .0006f then it will collide at .0003f from center of the box. So are you sure box casting is what you want? Basically your centroid is showing outside the original box because it doesn't cast inside itself, so it moves half the extents out and begins casting.
@RobAnthem .006 distance is between edges of colliders, not their origins (centroids). Actually i think maybe its because Unity uses calculations 1 unit = 100 pixels so 1 pixel = 0.01 unit ? So precision would be capable of doing precise calculations up to 2 digits after the dot and above that it uses rounding?
Answer by FakePL · Mar 03, 2019 at 09:27 PM
I think i found an answer. There is something like: Physics.defaultContactOffset Default value is 0,01 and you can change it in project settings.
Answer by Bunny83 · Mar 03, 2019 at 04:13 PM
You actually use this method wrongly in your sample code. You completely ignore the return value of the method. This is extremely important. The array that you pass in has 10 pre allocated results. If the method returns a value of 0, none of those 10 results should be processed. The return value tells you how many results the method has been written into the results array. So you can not use a foreach loop here.
The general usecase would look like this:
RaycastHit2D[] hits = new RaycastHit2D[10];
void FixedUpdate()
{
int hitCount = boxCollider.Cast(Vector2.up, hits, 2f);
for(int i = 0; i < hitCount; i++)
{
RaycastHit2D[] hit = hits[i] ;
Debug.DrawRay(transform.position, hit.point - hit.centroid, Color.red);
Debug.DrawLine(hit.centroid, hit.point, Color.yellow);
}
}
Note that i've declared and created the "hits" array outside the FixedUpdate method. The point of using a pre-allocated array is to avoid constant creation and garbage collection of the array.
It's actually not wrong, there is line if (!hit) break; although I agree I can easily avoid creating new array each Update (and i should) - this answer doesn't provide anything to original question since the only difference is garbage collection.
