Question by Junkface · Feb 21, 2018 at 07:55 AM · lightingsurface shadergrab

Different lighting in grabpass

I'm attempting to do some manipulation of colours after all lighting calculations have been done. As a first step I'm trying to get the scene with basic lighting using a grab pass but I'm getting a different image from the grab pass than if I use the same shader with the grab pass commented out. I'm using the default surface shader created as new by Unity with the following (copy and pasted from here) added to the end:

             GrabPass
             {
                 "_BackgroundTexture"
             }

             Pass
             {
                 CGPROGRAM
                 #pragma vertex vert
                 #pragma fragment frag
                 #include "UnityCG.cginc"

                 struct v2f
                 {
                     float4 grabPos : TEXCOORD0;
                     float4 pos : SV_POSITION;
                 };

                 v2f vert(appdata_base v) {
                     v2f o;
                     o.pos = UnityObjectToClipPos(v.vertex);
                     o.grabPos = ComputeGrabScreenPos(o.pos);
                     return o;
                 }

                 sampler2D _BackgroundTexture;

                 half4 frag(v2f i) : SV_Target
                 {
                     half4 bgcolor = tex2Dproj(_BackgroundTexture, i.grabPos);
                     return bgcolor;
                 }
                 ENDCG
 }

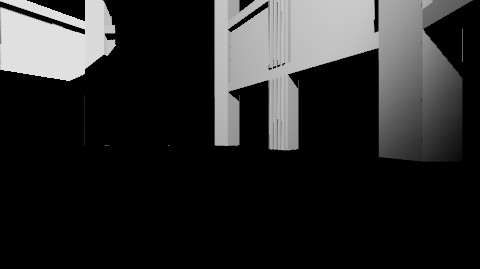

Without that snippet I get: alt text With it I get: alt text

Any ideas why, or of an alternative way to get the brightness of each pixel after all lights have rendered? If it's relevant, I currently have one directional light and one spotlight in the scene. Thanks in advance for taking the time to try and answer my (probably) silly question.

Comment
Add comment
10 |3000 characters needed characters left characters exceeded
▼
  • Viewable by all users
  • Viewable by moderators
  • Viewable by moderators and the original poster
  • Advanced visibility
Viewable by all users

1 Reply

· Add your reply
  • Sort:
avatar image
1
Best Answer

Answer by Junkface · Feb 21, 2018 at 01:15 PM

A couple of hours away from it and looking at the documentation again I realised the problem's "_BackgroundTexture" in the GrabPass. Got rid of that and now working as I expected it to. I'll leave this here in the hope it's of use to someone else.
