Question by Shinho · Oct 03, 2017 at 10:32 PM · importing problems

Clipboard image import

Is it possible to import an image from the clipboard to a texture2D? Seems system buffer can only recognize strings...

Comment
Add comment · Show 1
10 |3000 characters needed characters left characters exceeded
▼
  • Viewable by all users
  • Viewable by moderators
  • Viewable by moderators and the original poster
  • Advanced visibility
Viewable by all users
avatar image alelepd · Apr 26, 2018 at 03:50 AM 0
Share

Any progress on this? I am also needing this feature (for $$anonymous$$ac and Windows standalone). So far, it is just text, but no image content is available.

2 Replies

· Add your reply
  • Sort:
avatar image
1

Answer by Hellium · Apr 28, 2018 at 07:48 AM

Here is a solution that I've tested and works fine on Windows:

   1. In your project, create a Plugins folder

   2. Copy in this folder the following Mono dll:

         - <path_to_Unity>\Editor\Data\Mono\lib\mono\2.0\System.Drawing.dll

         - <path_to_Unity>\Editor\Data\Mono\lib\mono\2.0\System.Windows.Forms.dll

   3. In your code, add the following function.

 private Texture2D RetrieveFromClipboard()
 {
     System.Drawing.Image image = System.Windows.Forms.Clipboard.GetImage();
     System.IO.MemoryStream s = new System.IO.MemoryStream(image.Width * image.Height);
     image.Save(s, System.Drawing.Imaging.ImageFormat.);

     Texture2D texture = new Texture2D( image.Width, image.Height );
     texture.LoadImage(s.ToArray());

     s.Close();
     s.Dispose();

     return texture;
 }

   4. If you want to test easily this function:

         1. Create a new UI Image

         2. Go to the following address to get a random image : http://lorempixel.com/400/200/ and copy the image using Right click ► Copy image

         3. Create a new script called CopyTextureToClipboard and attach it to your camera / an empty. Drag & drop the image into the image field of the component, run the game and press F10 to see the image you have copied into your UI:

 using UnityEngine;

 public class RetrieveTextureFromClipboard : MonoBehaviour {

     public UnityEngine.UI.Image image;

     private Texture2D RetrieveFromClipboard()
     {
         System.Drawing.Image image = System.Windows.Forms.Clipboard.GetImage();
         System.IO.MemoryStream s = new System.IO.MemoryStream(image.Width * image.Height);
         image.Save(s, System.Drawing.Imaging.ImageFormat.Jpeg);

         Texture2D texture = new Texture2D( image.Width, image.Height );
         texture.LoadImage(s.ToArray());

         s.Close();
         s.Dispose();

         return texture;
     }

     // Update is called once per frame
     void Update ()
     {
         if( Input.GetKeyDown( KeyCode.F10 ))
         {
             Texture2D texture = RetrieveFromClipboard();
             image.sprite = Sprite.Create(texture, new Rect(0, 0, texture.width, texture.height), Vector2.one * 0.5f);
             image.preserveAspect = true;
         }
     }
 }




Comment
Add comment · Show 1 · Share
10 |3000 characters needed characters left characters exceeded
▼
  • Viewable by all users
  • Viewable by moderators
  • Viewable by moderators and the original poster
  • Advanced visibility
Viewable by all users
avatar image naviln · Jan 07, 2019 at 03:31 PM 0
Share

Amazing, thankyou!

avatar image
0

Answer by stuckwiththisname · Nov 02, 2021 at 03:42 PM

The Problem

@Hellium 's answer is very helpful, but it doesn't work in Unity 2019.4.19f. Based on other posts online, it seems to have been broken in the first release of 2019.

The problem is that the implementation of System.Windows.Forms.Clipboard is now a nulled-out mock object. All Set methods are empty and all Get methods throw NullReferenceException.

alt text

Selecting the right assembly

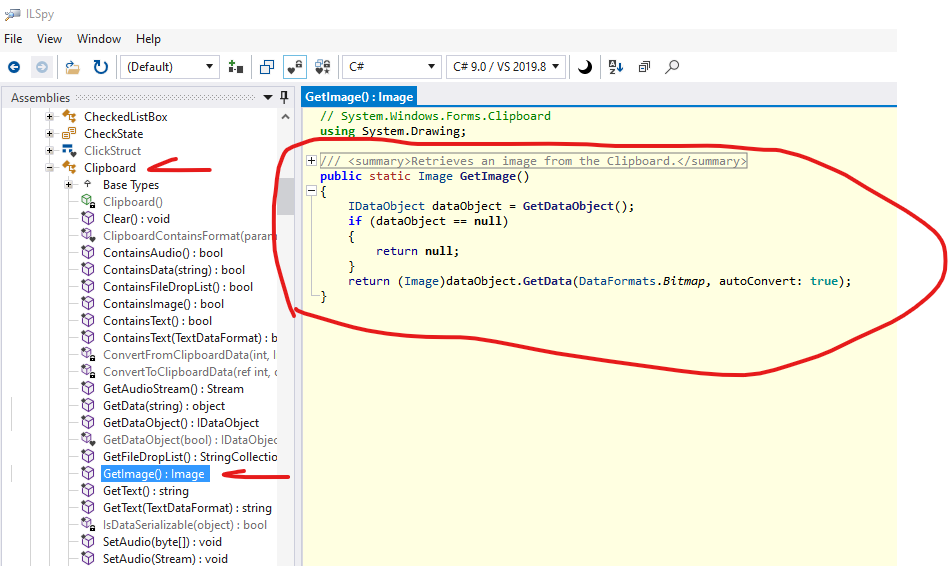

On my computer, there are many folders for .NET versions in *...\Unity\Hub\Editor\2019.4.30f1\Editor\Data\MonoBleedingEdge\lib\mono*. This is the folder that I'm using. Grab both assemblies from this folder.

I reflected many of these files and the one in ...\Unity\Hub\Editor\2019.4.30f1\Editor\Data\MonoBleedingEdge\lib\mono\4.5 has an implementation.

alt text

It looks like the file in unityjit and the gac folder probably have an implementation too, based on their file size. I'd avoid these two files unless you need them.

DO NOT use the file in any of the "api" folder, such as 2.0-api, 4.0-api, or 4.5.1-api. All of the "api" folders are have an empty mock class for Clipboard.

Current problem

The next problem that you'll run into is that Unity will crash when you try to call GetImage(). Calling ContainsImage() will function correctly, but when you try to get the image then Unity will crash. Wrap it in a try/catch block, try it in the immediate window... as soon as GetImage() is invoked, Unity goes down.

Here's the useful part of the stack. It gets so close, but it fails during Marshal.Copy, which is used to copy data from an unmanaged memory pointer to a managed 32-bit signed integer array. At that point, it jumps into external unmanaged code, in marshal.c and memcpy.asm, and the user base is probably not finding a work around to a problem that goes this deep.


0x00007FFBACA45537 (mono-2.0-bdwgc) [f:\dd\vctools\crt\vcruntime\src\string\amd64*memcpy.asm:135] memcpy 0x00007FFBAC7BC351 (mono-2.0-bdwgc) [c:\users\builduser\builds\tsuywz8z\0\vm\mono\mono\metadata*marshal.c:11069] ves_icall_System_Runtime_InteropServices_Marshal_copy_from_unmanaged 0x0000019792E67154 (mscorlib) System.Runtime.InteropServices.Marshal.copy_from_unmanaged() 0x0000019792DE9C4B (mscorlib) System.Runtime.InteropServices.Marshal.Copy() 0x0000019792DE3B4B (System.Windows.Forms) System.Windows.Forms.XplatUIWin32.DIBtoImage() 0x0000019792DE0613 (System.Windows.Forms) System.Windows.Forms.XplatUIWin32.ClipboardRetrieve() 0x0000019792DDF9BA (System.Windows.Forms) System.Windows.Forms.XplatUI.ClipboardRetrieve() 0x0000019792DD596B (System.Windows.Forms) System.Windows.Forms.Clipboard.GetDataObject() 0x0000019792DD55BB (System.Windows.Forms) System.Windows.Forms.Clipboard.GetDataObject() 0x0000019792DD534B (System.Windows.Forms) System.Windows.Forms.Clipboard.GetImage() 0x0000019792DD46B3 (Assembly-CSharp) RetrieveTextureFromClipboard.RetrieveFromClipboard()
