Question by noahbald · Mar 13, 2016 at 08:27 AM · transformtransform.position

How to set an object's position a certain distance away from a target at the same angle?

I'm trying to have an object stay 3 units away as the characters moves closer towards it so it's like it gets pushed.

 if (Vector2.Distance(transform.position, player.transform.position) < 3)
                 {
                     transform.position = ((player.transform.position - transform.position).normalized * 3) + player.transform.position;
                 }

This is what I've written but it doesn't work. As you walk into the radius the object will go to the other side rather than being 'pushed'.

Comment
Add comment
10 |3000 characters needed characters left characters exceeded
▼
  • Viewable by all users
  • Viewable by moderators
  • Viewable by moderators and the original poster
  • Advanced visibility
Viewable by all users

1 Reply

· Add your reply
  • Sort:
avatar image
0
Best Answer

Answer by ZefanS · Mar 14, 2016 at 06:48 AM

The key to making sure the object is pushed away from the player is to calculate the vector between the object and the player. With that you know which direction to move the object.

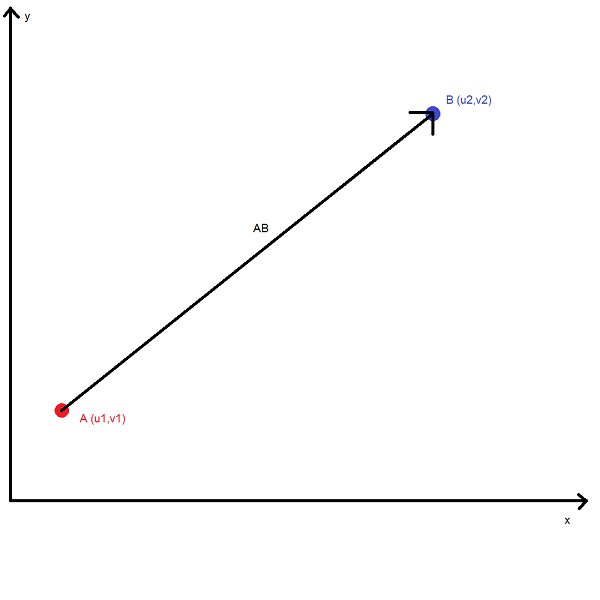

alt text Given two points A and B, the vector AB that goes from A to B is calculated as: AB = (B - A)

or written out:

AB = (u2 - u1, v2 - v1)

Once we know this vector there are a few ways we can proceed. I've thrown together a couple different scripts here. The first uses Transform.Translate() and the second uses Rigidbody.AddForce(). They are written for 3D but it should be trivial to convert them to handle 2D if necessary.

Script 1:

 #pragma strict

 public var player : GameObject;
 public var distance : float;
 public var pushStrength : float;

 function Update()
 {
     //Calculate the distance between the object and the player
     var dist = Vector3.Distance(transform.position, player.transform.position);

     if (dist < distance)
     {
         //Calculate the vector between the object and the player
         var dir : Vector3 = transform.position - player.transform.position;
         //Cancel out the vertical difference
         dir.y = 0;
         //Translate the object in the direction of the vector
         transform.Translate(dir.normalized * pushStrength);
     }
 }


Script 2:

 #pragma strict

 @script RequireComponent(Rigidbody);

 public var player : GameObject;
 public var distance : float;
 public var pushStrength : float;

 private var rb : Rigidbody;

 function Start()
 {
     rb = GetComponent.<Rigidbody>();
 }

 function Update()
 {
     //Calculate the distance between the object and the player
     var dist = Vector3.Distance(transform.position, player.transform.position);

     if (dist < distance)
     {
         //Calculate the vector between the object and the player
         var dir : Vector3 = transform.position - player.transform.position;
         //Cancel out the vertical difference
         dir.y = 0;
         //Translate the object in the direction of the vector
         rb.AddForce(dir.normalized * pushStrength);
     }
 }

You should attach one of these scripts to the object to be pushed. Remember to edit the values in the inspector.

Hope this helps!
