Question by donmc · Oct 28, 2014 at 12:45 PM · meshfps

Very Low FPS rendering only meshes

I've been working on a game that generates/renders a fractal terrain at runtime using meshes. I was doing this on very small power of 2 sized maps and everything was fine. As soon as I increased the size to 128x128 the application became a slide show.

I culled my project down to a bare bones test case. I was trying to find why the performance is so low with only 32k triangles, but without luck. I'm hoping I've missed something simple.

Admittedly I have a pretty old machine. it's a dual core 3.1ghz with 4gb of ram and directx 9. It does have an nvidia gtx460 gpu however.

I created a new project with 3 objects and 1 script. The default camera, an empty game object with my script attached to it, and a third empty game object. The third one is a prefab with a mesh renderer, mesh collider, and mesh filter attached. I disabled vsync in the project settings.

Here's my lone script:

 using UnityEngine;
 using System.Collections;

 public class gen : MonoBehaviour {

     public Transform mt;

     private Mesh mesh;
     private MeshFilter mf;
     private MeshCollider mc;
     private MeshRenderer mr;

     private int size = 129;

     void Start ()
     {
         CreatePlaneMesh();

         for (int x=0; x<size; x++)
         {
             for(int z=0; z<size; z++)
             {
                 Transform tr = Instantiate (mt, new Vector3 (x*3f, 0f, z*3f), Quaternion.identity) as Transform;
             }
         }
     }

     public void CreatePlaneMesh()
     {
         mesh = new Mesh ();

         mf = mt.GetComponent<MeshFilter> ();
         mc = mt.GetComponent<MeshCollider> ();
         mr = mt.GetComponent<MeshRenderer> ();

         mf.mesh = mesh;

         Vector3[] vertices = new Vector3[]
         {
             new Vector3( 1, 0,  1),
             new Vector3( 1, 0, -1),
             new Vector3(-1, 0,  1),
             new Vector3(-1, 0, -1),
         };

         Vector2[] uv = new Vector2[]
         {
             new Vector2(1, 1),
             new Vector2(1, 0),
             new Vector2(0, 1),
             new Vector2(0, 0),
         };

         int[] triangles = new int[]
         {
             0, 1, 2,
             2, 1, 3,
         };

         Vector3[] normals = new Vector3[]
         {
             new Vector3( 0, 1,  0),
             new Vector3( 0, 1,  0),
             new Vector3( 0, 1,  0),
             new Vector3( 0, 1,  0),
         };

         mesh.vertices = vertices;
         mesh.uv = uv;
         mesh.triangles = triangles;
         mesh.normals = normals;
         mesh.RecalculateNormals ();

         mc.sharedMesh = mesh;
     }
 }

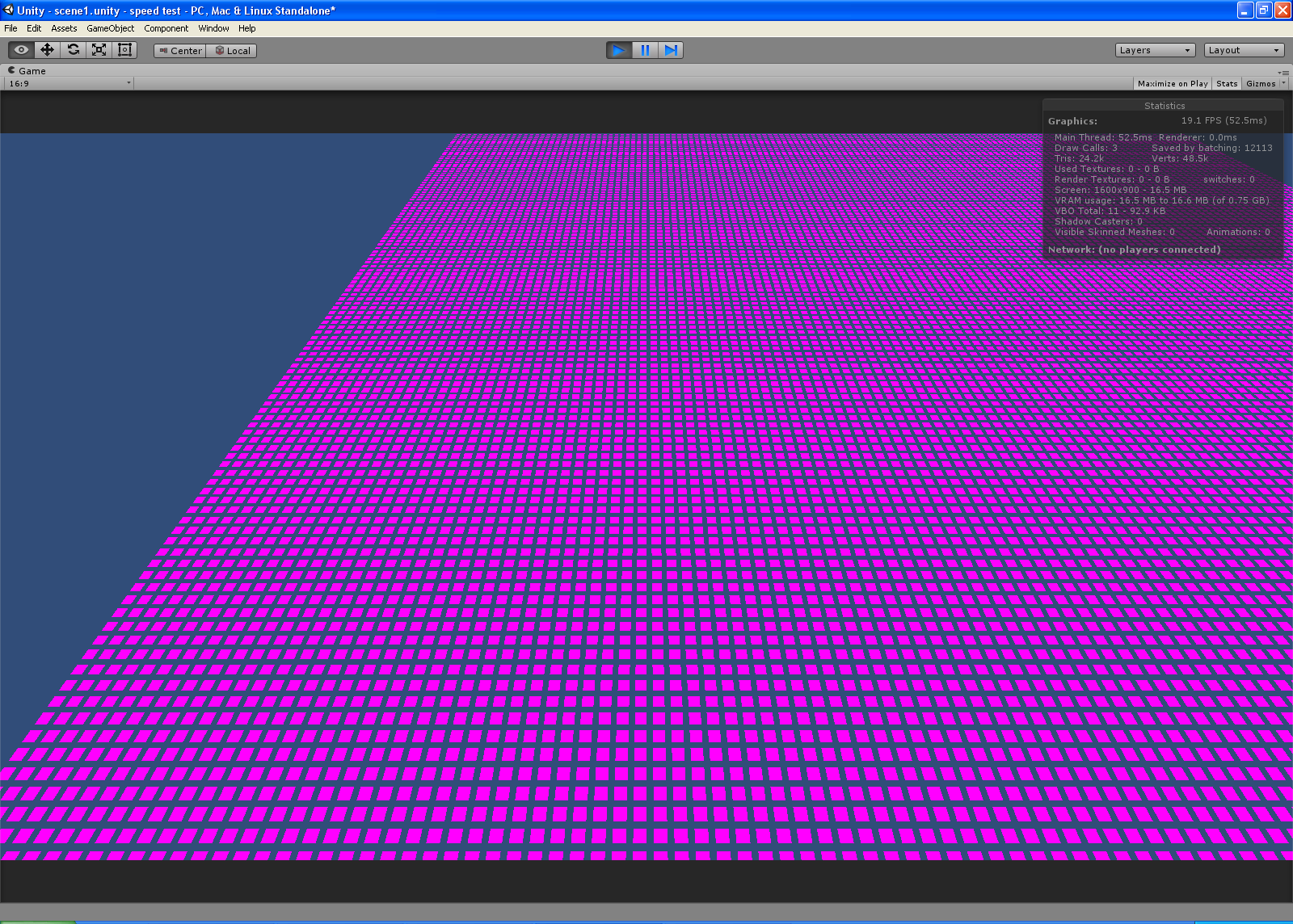

No update methods. Nothing else in the project. When I run it in the webplayer I get sub 20 frames per second. That seems very low when rendering <25k triangles on screen. The docs state you should keep your triangle count under 3m on a desktop, so I'm really confused. It pegs one of my cpu cores at 100% so I'm guessing this is CPU limited instead of GPU limited.

Is there some simple gotcha I've overlooked here? I plan to cull distant/hidden objects in the future, but I'm concerned about the low FPS.

alt text

Comment
Add comment · Show 2
10 |3000 characters needed characters left characters exceeded
▼
  • Viewable by all users
  • Viewable by moderators
  • Viewable by moderators and the original poster
  • Advanced visibility
Viewable by all users
avatar image Itaros · Oct 28, 2014 at 12:48 PM 0
Share

What profiler tells?

avatar image MrSoad · Oct 28, 2014 at 01:41 PM 0
Share

On my old laptop, which was lower spec that your PC, changing a simple mesh a runtime using the method you are using caused a massive frame rate drop. Down to 1 - 2 fps. I had to take this out of Update and do it via an Invoke method that only ran 3 times per second, that got me back up to about 20 fps.

1 Reply

· Add your reply
  • Sort:
avatar image
2

Answer by tanoshimi · Oct 28, 2014 at 02:07 PM

If you're trying to create a procedural terrain, you're going about it the wrong way. What your script does at the moment is create 16,641 (129x129) individual game objects, each consisting of a single quad plane.

Dynamic batching is kicking in which is saving your draw calls, but there will be signicant overhead in those 12,113 dynamically batched meshes. Then, I imagine the real killer is you're assigning a mesh collider (the most expensive type of collider) to all 16,000 objects in the scene.

If you want to create a procedural terrain mesh, you need to be calculating the vertices in a single shared mesh, not lots of tiny ones.

Comment
Add comment · Show 1 · Share
10 |3000 characters needed characters left characters exceeded
▼
  • Viewable by all users
  • Viewable by moderators
  • Viewable by moderators and the original poster
  • Advanced visibility
Viewable by all users
avatar image donmc · Oct 29, 2014 at 02:55 AM 0
Share

Thanks! This was the direction I needed to go. I changed the code to use a single mesh and the frame rate goes up to 2,500fps while rendering 10k quads on screen.

Unity cried when I tried to create a mesh with more than 65k vertices, but I can work around that. I understand the mesh collider is expensive, but I do want collision detection on my terrain.

Thanks again.
